BMX Subrosa Simo 10 Year Frame | RideHub

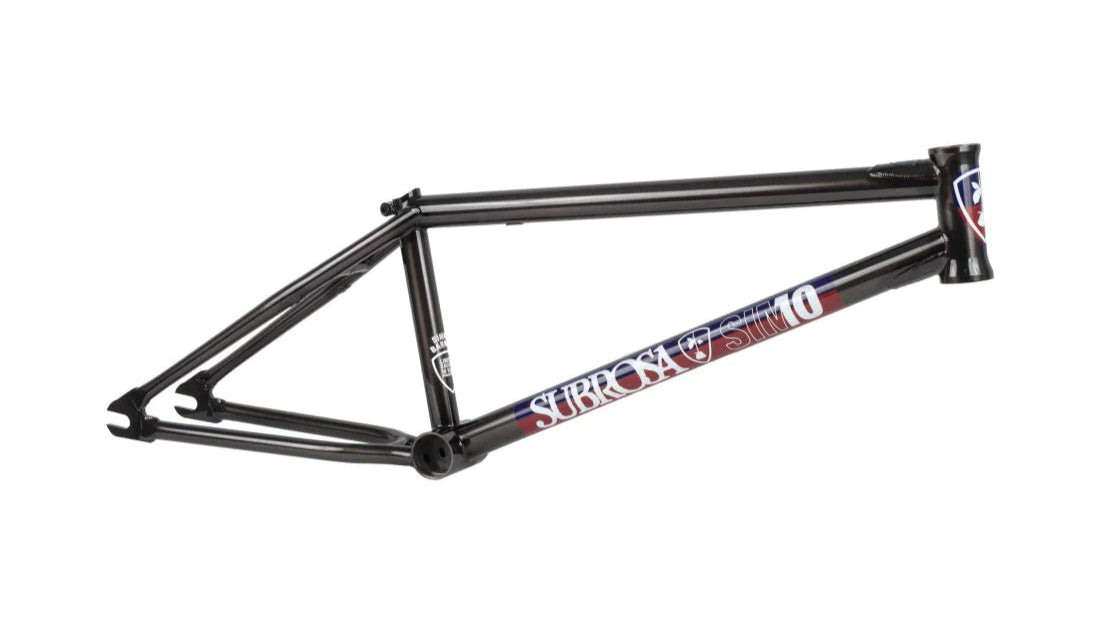

The Subrosa Simo 10 Year Frame is Simone Barraco's anniversary frame , created to celebrate the 10th anniversary of his collaboration with Subrosa . Designed with excellent street geometry in mind, this frame has undergone years of testing and refinement to ensure the perfect balance between stability and agility .

Constructed from 100% 4130 chromoly , it features reinforced gussets on the top and down tubes for added strength. Integrated chain guides in the dropouts , along with investment cast seat stays and chain stay bridges, provide even greater durability and precise rear wheel installation.

Product features:

• Material: 100% 4130 Chromoly – maximum impact resistance
• Top Tube Length (TT): 20.6", 20.8", 21.15" – wide selection for different riders
• Chainstays (CS): 13.2” - 14.0” (13.2" Slammed) – optimal balance between stability and agility
• Headtube angle: 75° – modern geometry for street and park riding
• Seat tube angle: 71° – comfortable rider position
• BB Height: 11.5" - Lower center of gravity for stability

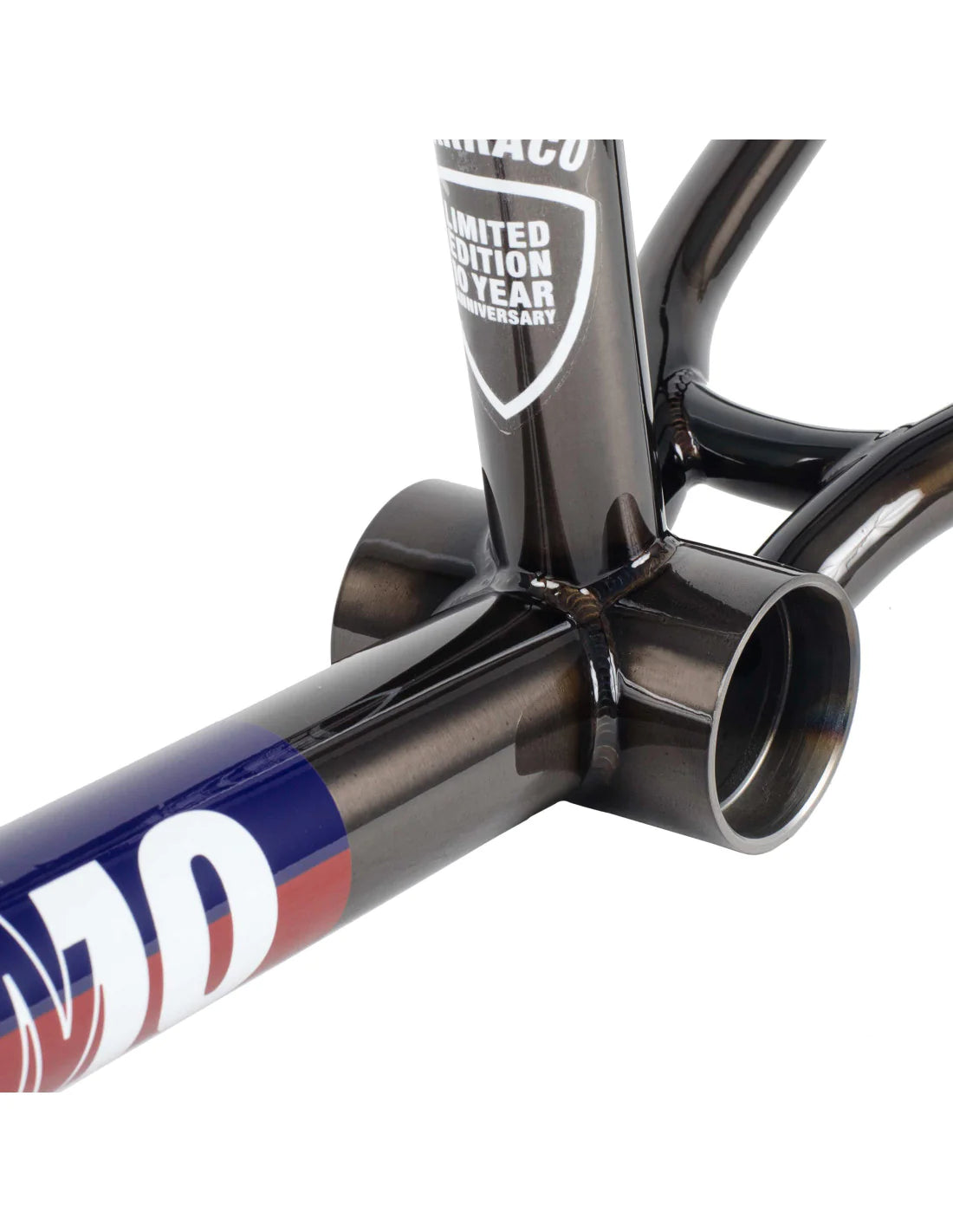

• Bottom Bracket: Mid BB – the standard for modern BMX frames

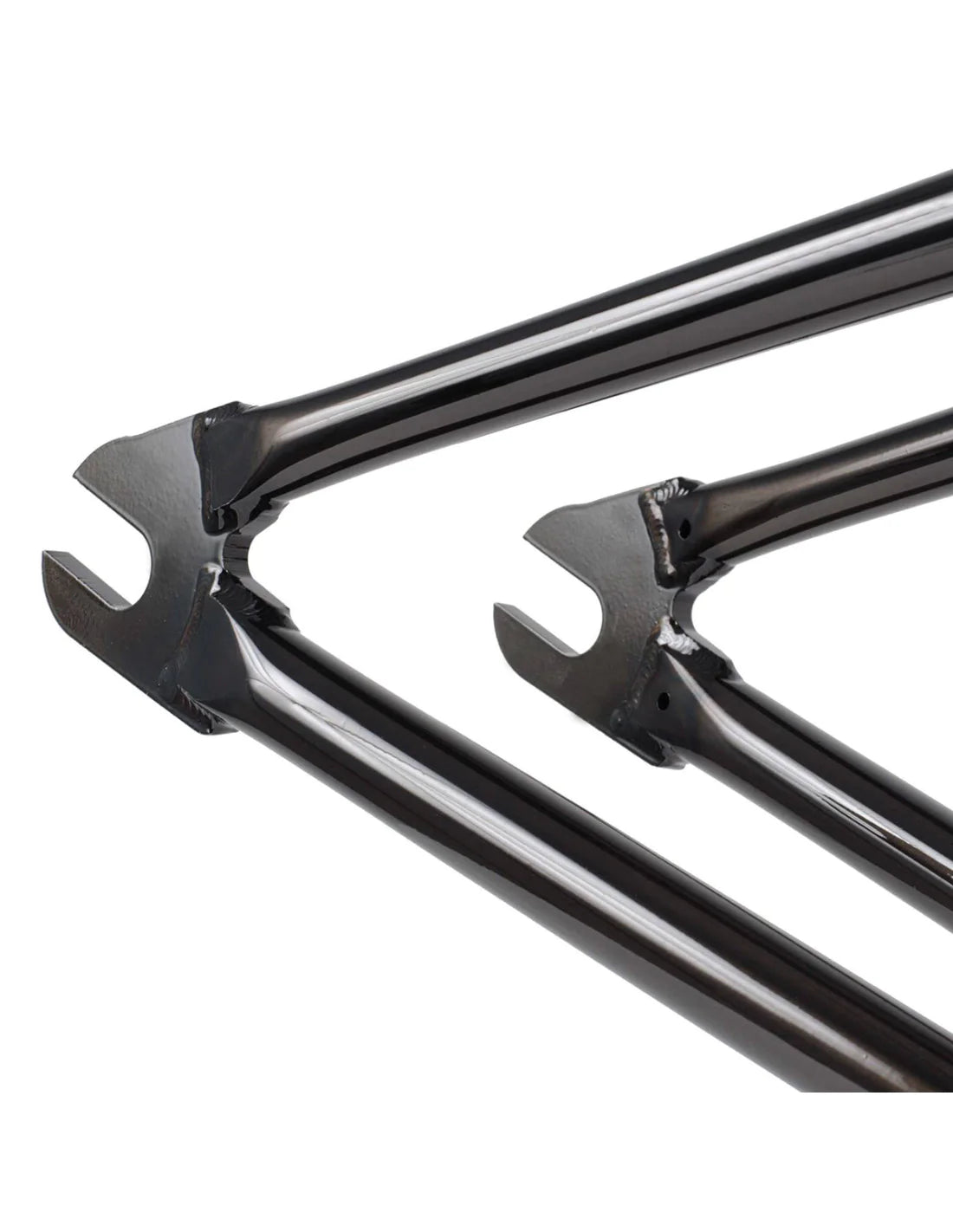

• Dropouts: 6mm, Investment Cast with built-in chain tensioners
• Gussets: TT/DT with embossed Subrosa logo – extra durability
• Bridges: Investment Cast Seat Stay and Chain Stay Bridges – reinforced construction

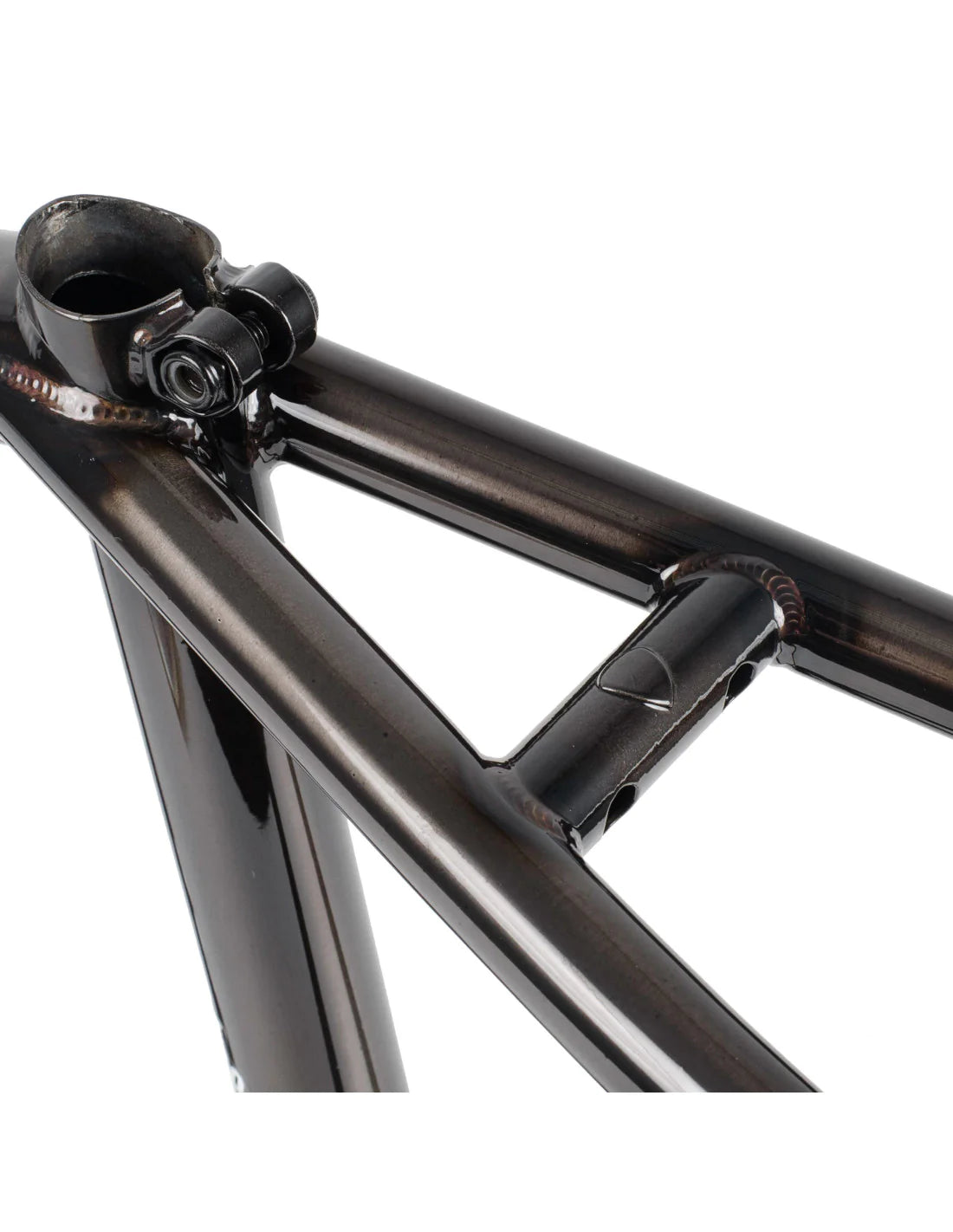

• Seat Clamp: Integrated, Investment Cast – improved aesthetics and functionality
• Brake Mounts: Removable (sold separately) – flexible configuration
• Weight: 21.15" - 2.4 kg (5.29 lbs)

Specification:

• 10th Anniversary Edition of Simone Barraco at Subrosa
• Balanced geometry – precise control and stability in street and park
• Investment Cast Dropouts with built-in chain tensioners – better control over rear wheel alignment
• Short chainstays (13.2” Slammed) – greater maneuverability
• Reinforced TT and DT gussets – additional resistance to cracking
• Wide tire compatibility – more stability and grip

For whom?
The Subrosa Simo 10 Year Frame is the perfect BMX street and park frame , created for riders who want a combination of durability, maneuverability and riding precision .

The most important advantages:
✅ Limited edition for the 10th anniversary of Simone Barraco
✅ 100% chromoly 4130 – extreme durability
✅ Short tail section (13.2") – responsiveness and control
✅ Integrated chain tensioners – perfect rear wheel alignment
✅ Integrated seat clamp – improved aesthetics and comfort
✅ Possibility of mounting brakes - optional mountings

Choose the Subrosa Simo 10 Year Frame and enjoy the unique, street-ready geometry of Simone Barraco! 🚲🔥
