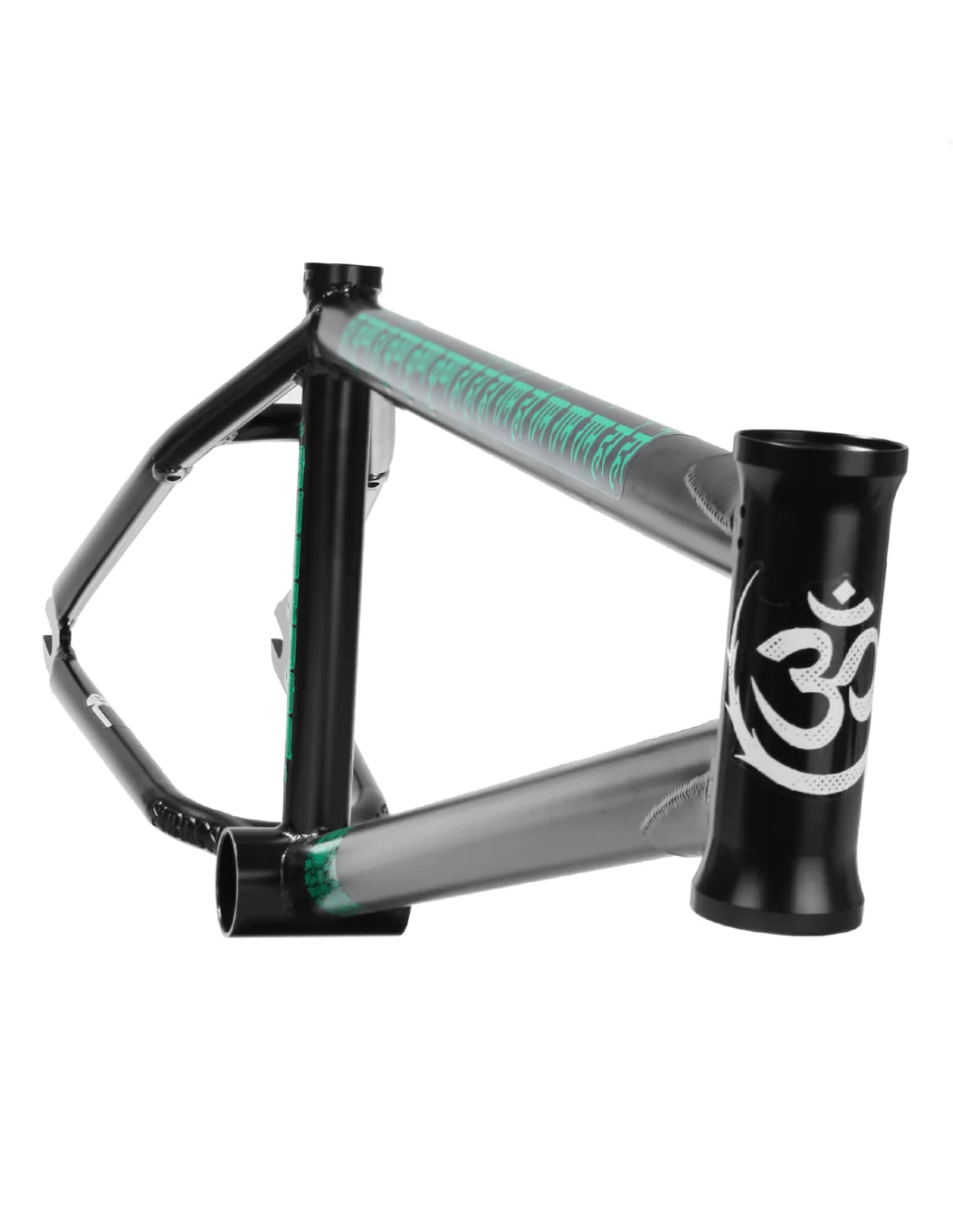

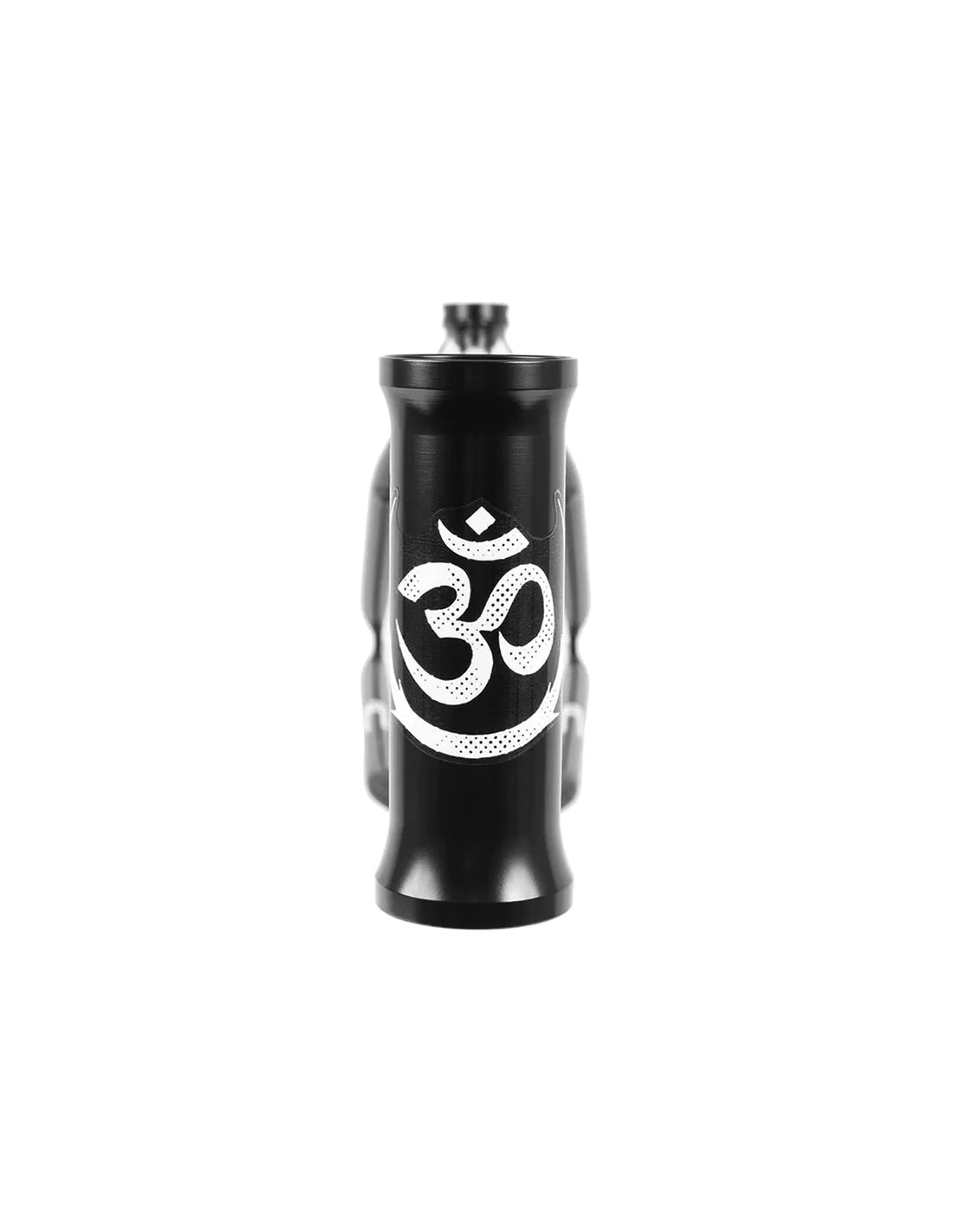

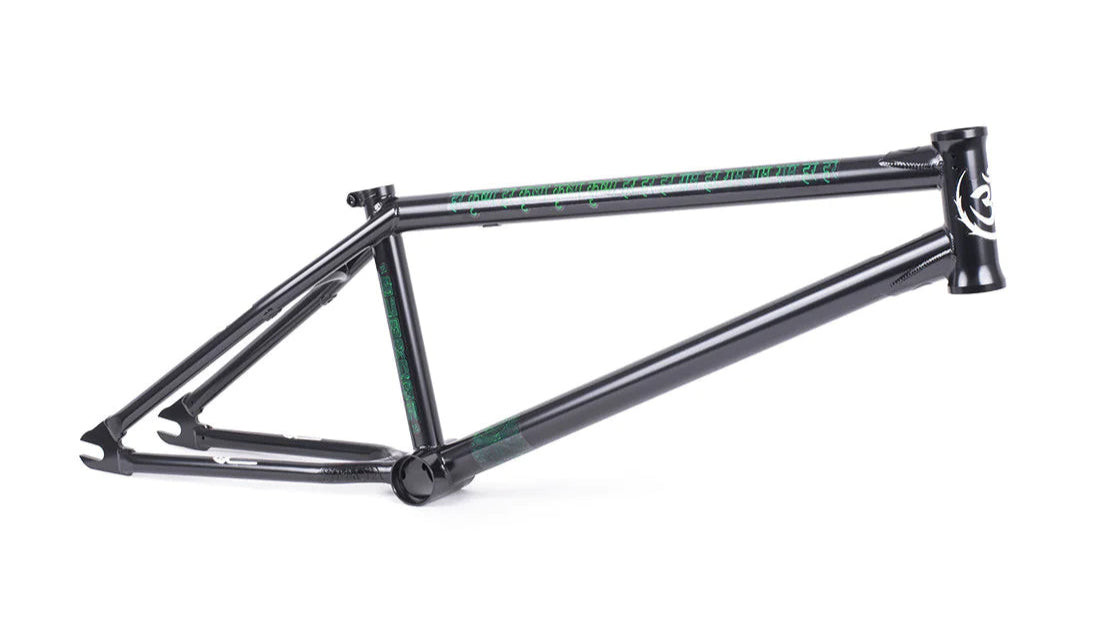

BMX Subrosa Om V2 Frame | RideHub

The Subrosa Om V2 Frame is the latest version of Joris Coulomb's signature frame , designed for BMX riders who value agility, durability, and modern design solutions . With a short rear end (12.95" Slammed) , the frame provides maximum responsiveness and control , while the use of an invest cast yoke in the bottom bracket area increases the weld surface area, improving durability and enabling the installation of the widest range of available tires .

100% 4130 chromoly steel construction and numerous reinforcements, such as TT and DT gussets and investment cast dropouts with built-in chain stays , make this frame incredibly durable. Additionally, the frame features an integrated seat clamp and the ability to install brakes (sold separately) .

Product features:

• Material: 100% 4130 Chromoly – maximum strength
• Top Tube Length (TT): 20.5", 20.75" - perfect for a variety of rider sizes
• Chainstays (CS): 12.95” – 13.7" (12.95" Slammed) – short and responsive
• Headtube angle: 75° – modern geometry for precise steering
• Seat tube angle: 71° – optimal rider position
• BB Height: 11.7" - Stability and Control
• Bottom Bracket: Mid BB – standard in modern BMX frames

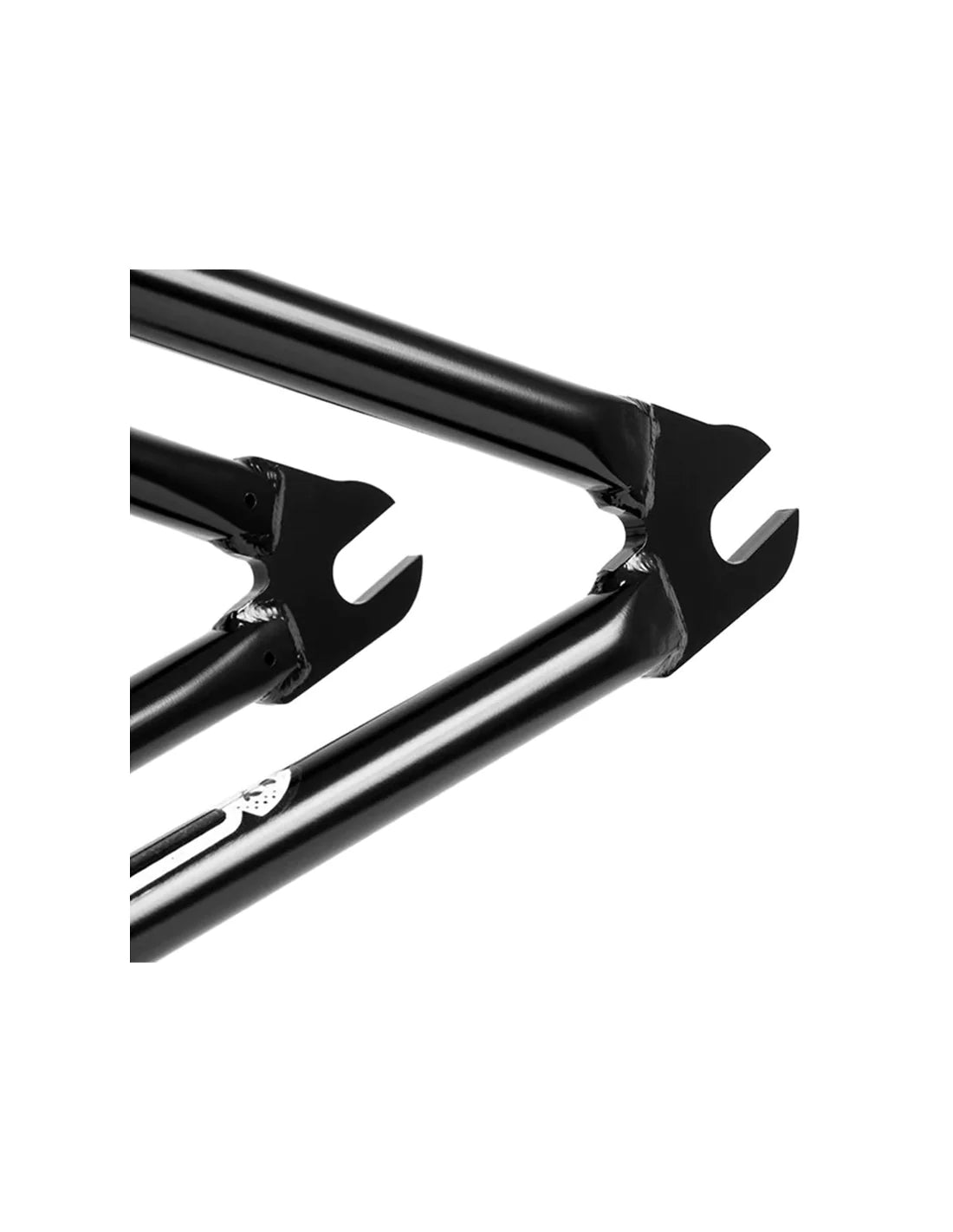

• Dropouts: Investment Cast, with built-in chain tensioners – precise rear wheel alignment

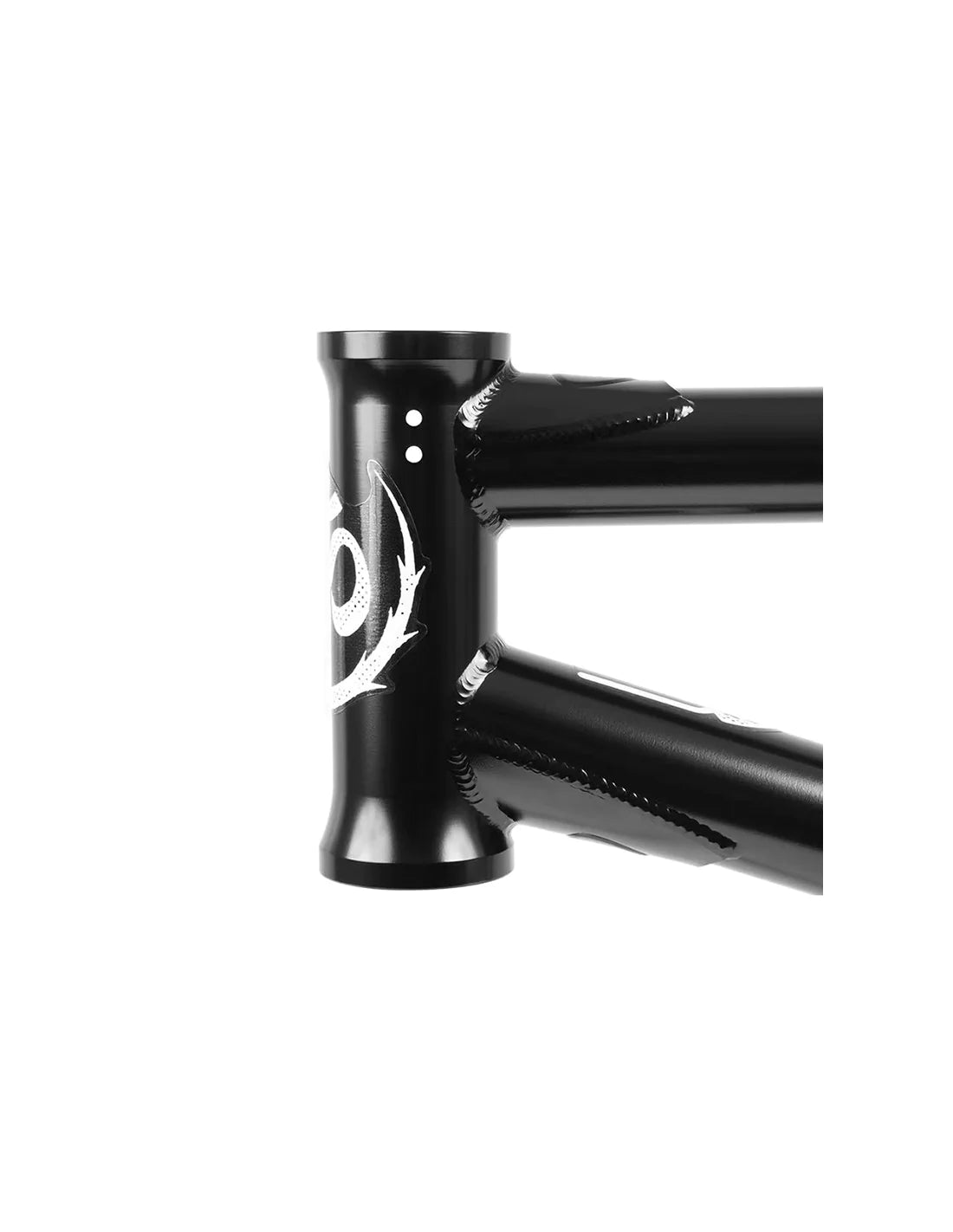

• Gussets: TT/DT with embossed Subrosa logo – extra durability
• Bridges: Investment Cast Seat Stay and Chain Stay Bridges – reinforced construction

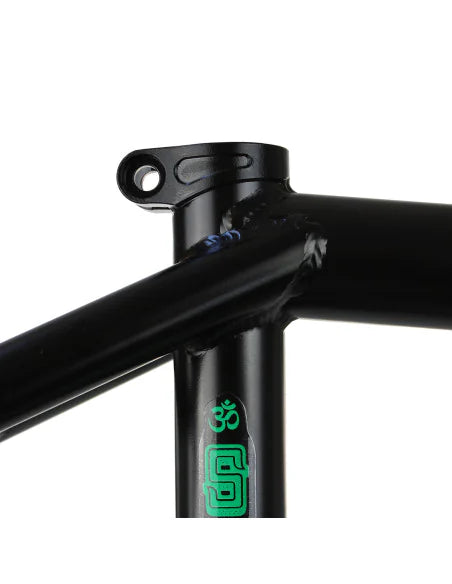

• Seat Clamp: Integrated, Investment Cast – aesthetics and functionality
• Brake Mounts: Removable (sold separately) – flexible configuration
• Weight: 20.5" - 2.31 kg (5.1 lbs)

Specification:

• Ultra-responsive geometry – perfect for street and park riders

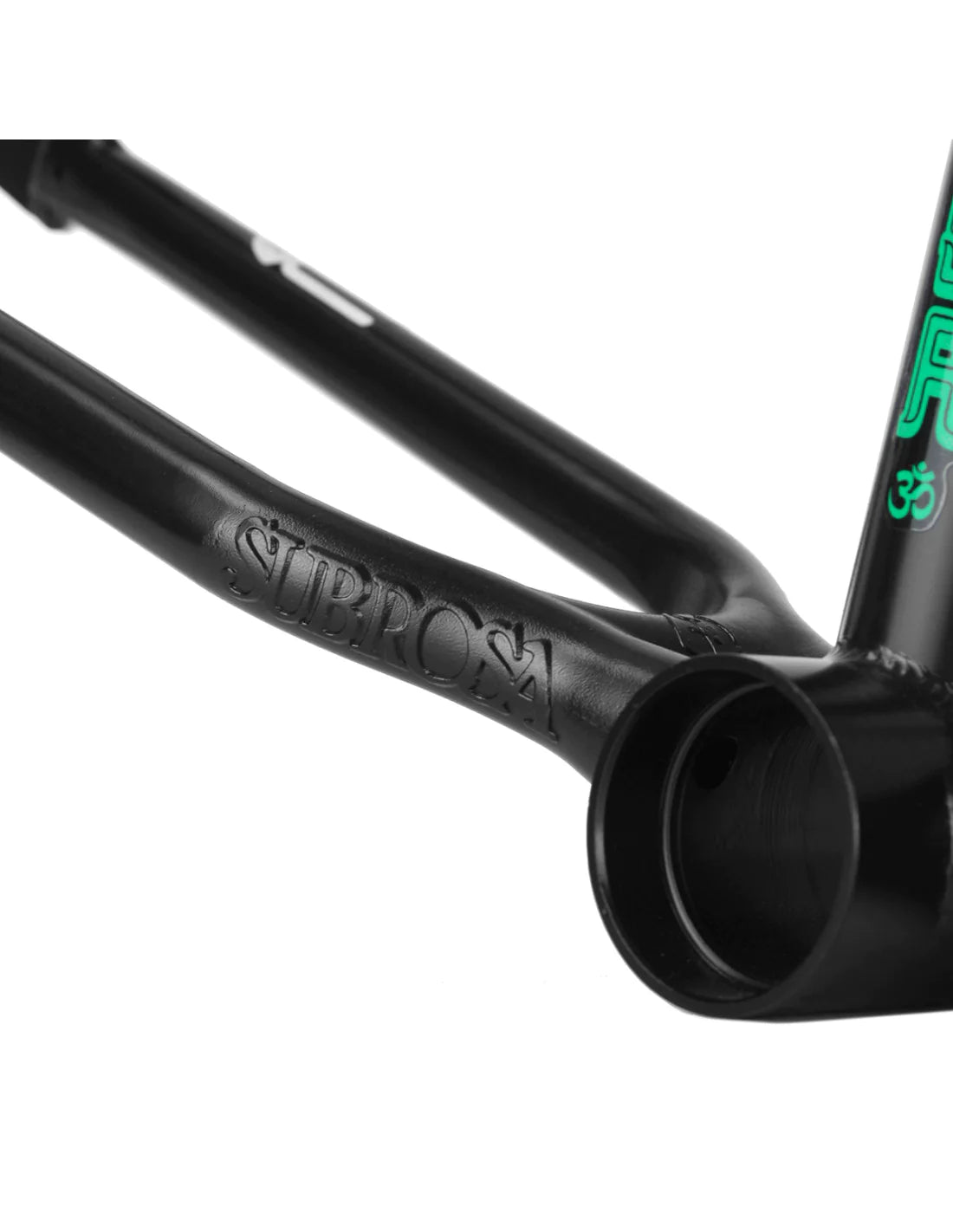

• New Investment Cast Yoke BB – larger weld area and durability
• Short 12.95” Slammed chainstays – improved maneuverability and control
• Wide tire compatibility – stability and grip
• Reinforced TT and DT gussets – higher resistance to cracking

For whom?
The Subrosa Om V2 Frame is the perfect frame for BMX street and park riders who want an agile, strong and well-thought-out design that is adapted to modern riding standards .

The most important advantages:
✅ 4130 Chromoly construction – maximum durability
✅ Short 12.95” chainstays – responsiveness and steering precision
✅ Investment Cast Yoke BB – greater durability and room for wide tires
✅ Investment Cast Dropouts – Integrated Chain Tensioners
✅ Integrated seat clamp – aesthetics and functionality
✅ Removable brake mounts – can be used with or without brakes

Choose the Subrosa Om V2 Frame and enjoy durability, control, and modern design at its best! 🚲🔥
