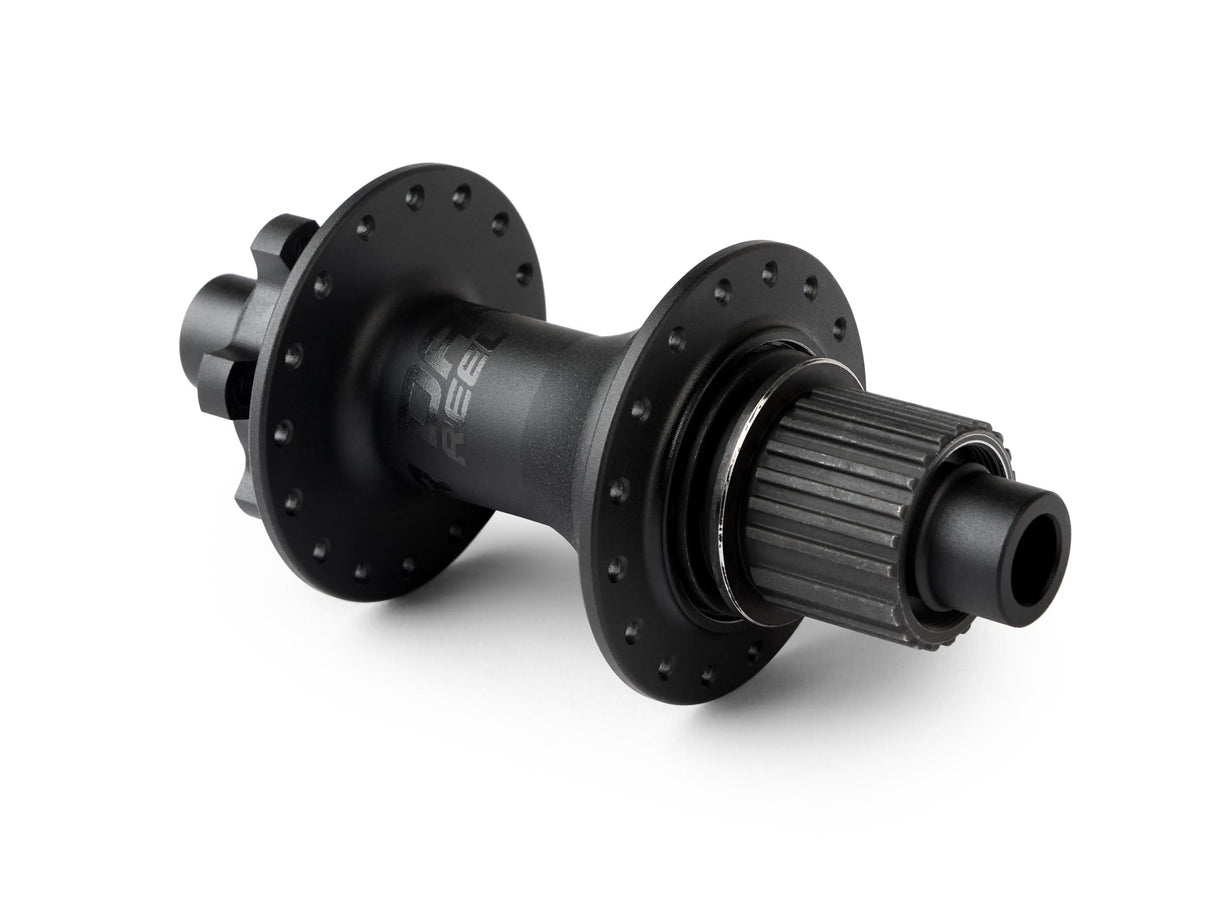

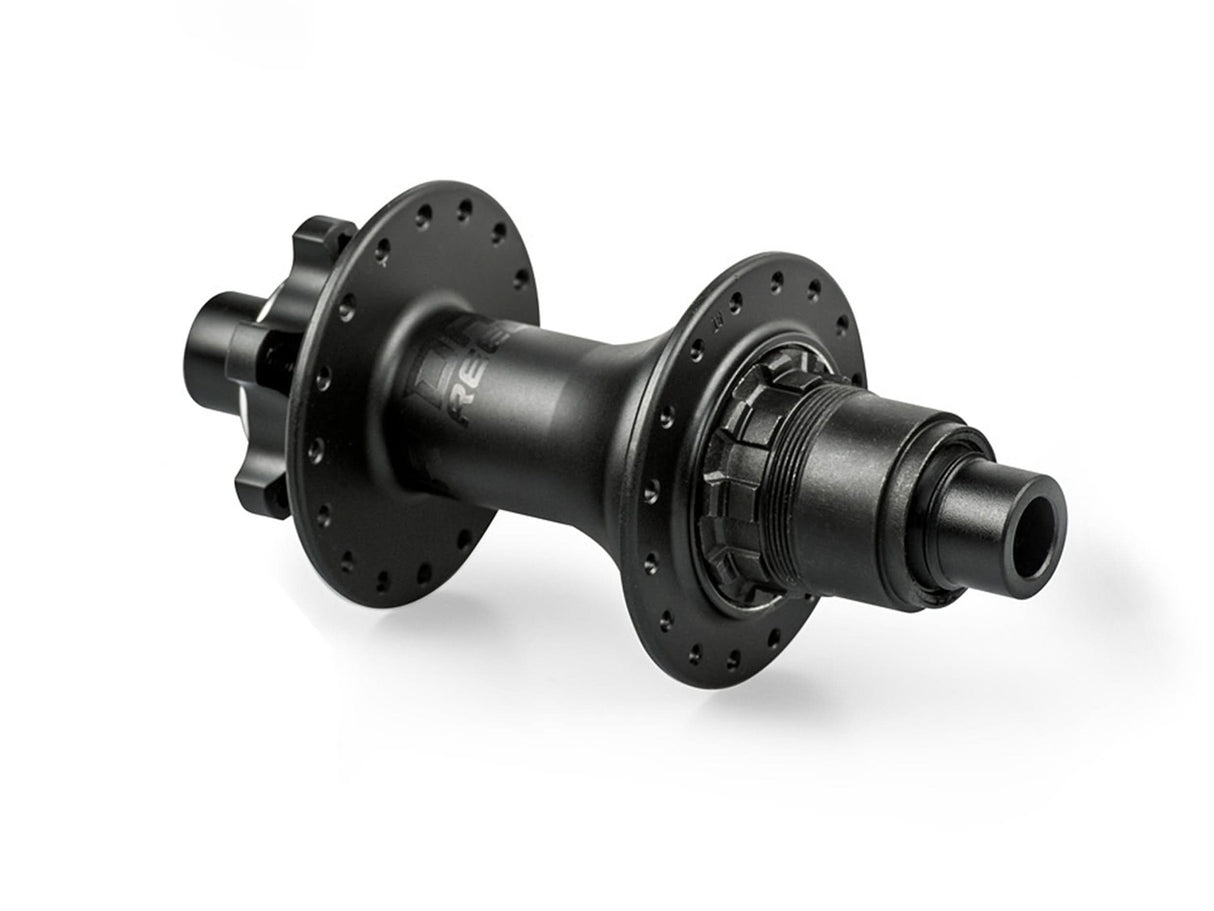

The Dartmoor Reel V.2 Rear is a reliable rear hub designed for intensive use in Trail , Enduro , and Freeride . Equipped with a steel freehub with a 3-pawl system and 5 precision cartridge bearings with waterproof Mobil grease and full seals, it guarantees long, trouble-free operation even in the harshest conditions. The V.2 version has been reinforced with an additional bearing in the freehub body, increasing its durability in 12-speed drivetrains with large sprockets (50T+).

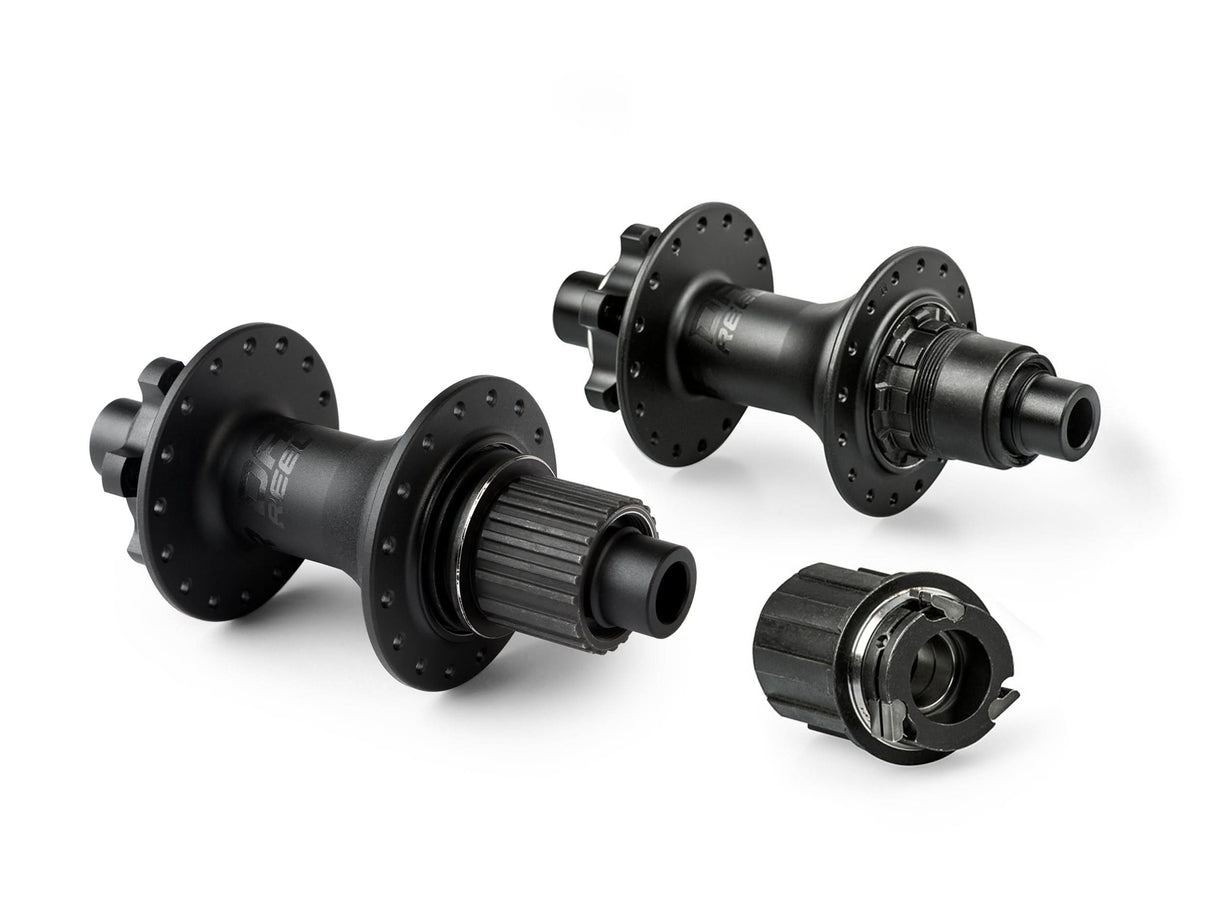

Available in 148x12mm Boost and 142/135x12mm variants, with a choice of Shimano HG , Shimano Microspline , or SRAM XD freehub bodies. QR adapter to convert from 135x12mm to 135x10mm available separately.

Product features:
✔ Solid steel barrel – compatible with 3 drive systems
✔ 5 high-quality sealed bearings – smooth operation and durability
✔ AL 6061-T6 aluminum body and AL 7075-T6 cones
✔ 38 points of engagement – ​​quick drive response
✔ Two axle sizes to choose from: Boost 148x12 mm or 142/135x12 mm

Technical specifications:
🔹 Weight: 445 g (148x12 mm), 433 g (135/142x12 mm)
🔹 Axle: 15mm, Cr-Mo
🔹 Number of holes: 32H
🔹 Bearings: 5 sealed cartridge bearings
🔹 Freehub body: steel, Shimano HG / Microspline / SRAM XD
🔹 Body material: AL 6061-T6
🔹 Cones: AL 7075-T6, press-fit
🔹 Pawl system: 3 pawls
🔹 Engagement points: 38
🔹 Color: Anodized Black

For whom:
🔸 For Trail, Enduro and Freeride riders
🔸 For users of 12-speed drivetrains with a large sprocket
🔸 For those looking for a reliable, durable rear hub

The most important advantages:
✅ Additional bearing in the freehub for greater durability
✅ Versatility – compatibility with three drive systems
✅ High precision and quick response thanks to 38 points of engagement

Maximum reliability and smooth operation – in all conditions 🚵♀️
