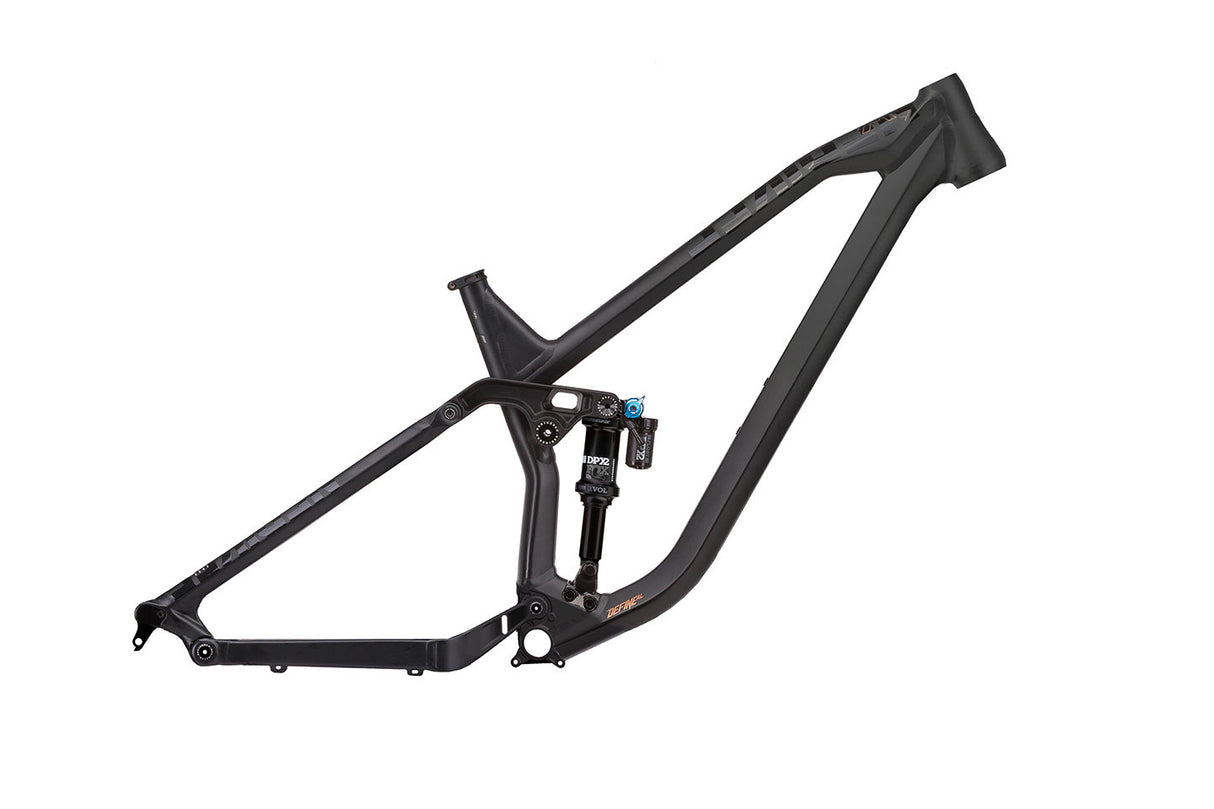

The NS Bikes Define AL 130 , with a FOX Performance Elite DPX2 shock, is an excellent choice for riders looking for a lightweight yet highly versatile base for a trail/all-mountain bike. The frame offers 130mm of rear suspension travel and works perfectly with forks with 130-150mm of travel, making it the perfect foundation for a fast, responsive, and technical mountain bike.
Crafted from the highest quality 6061-T6 + 6066-T6 aluminum, the Define 130 frame boasts aesthetics and durability thanks to double-pass welds. It's complemented by a lightweight and stiff one-piece rocker , internal cable routing in a dedicated downtube channel, and a 148x12mm Boost standard.
Product features:
✔ Carefully designed from 6061-T6 + 6066-T6 aluminum
✔ FOX Performance Elite DPX2 LV Evol damper in Trunnion standard
✔ Effective rear suspension travel 130 mm
✔ Suspension system with MAX bearings and upper shock bearing
✔ Internal cable management – aesthetic and practical
Technical specifications:
🔹 Material: 6061-T6 + 6066-T6 aluminum, butted and formed tubes
🔹 Damper: FOX Performance Elite DPX2 LV Evol (Trunnion)
🔹 Frame travel: 130 mm
🔹 Recommended fork travel: 130–150 mm
🔹 Rocker: One-piece, 6061-T6 aluminum
🔹 Bearings: MAX
🔹 Headset: Semi-integrated IS42/IS52 (tapered)
🔹 Rear axle: Boost 148x12 mm (included)
🔹 Brake Mount: Post Mount
🔹 Bottom Bracket: BSA 73mm
🔹 Tire size: up to 29"x2.5" or 27.5"x3.0"
🔹 Seatpost: Internal cable routing
🔹 Seatpost clamp: CNC, included
🔹 Weight: 3.5 kg (frame only)
For whom:
🔸 For riders building a lightweight trail or all-mountain bike
🔸 For lovers of smooth riding and technical descents
🔸 For those looking for modern geometry and durability
The most important advantages:
✅ Light and strong aluminum with precise welds
✅ High-end FOX Performance Elite DPX2 shock absorber
✅ Compatible with 29" and mullet wheels
✅ Well-thought-out cable management and aesthetic finish
✅ Frame ready for long mountain adventures
NS Define AL 130 – lightness, control, and driving pleasure in one package. 🏞️🚵♂️💨
